FACADES

Facades by ELVIAL redefine the discourse between the natural environment and the building. The horizons of architectural and engineering possibility are broadened, creating new perspectives and experiences.

Quality supports aestetics, liberating your creative capacity. Envision the building, create the condition that will redefine boundaries respectinig the functional elements and the users' comfort.

ATTENTION TO DETAILS

LARGE GRIDS

The ability to create large grids with multiple mullion-transom connection solutions provides significant flexibility in architectural design and construction. This allows for the efficient distribution of loads and the customization of structural elements to meet specific project requirements. By utilizing various connection solutions, designers can enhance the stability and aesthetic appeal of the grid system.

SAME LEVEL APPEARANCE AND SHADE

A same level appearance can contribute to a seamless and cohesive aesthetic, enhancing the overall visual appeal of the environment. On the other hand, shade can add depth allowing for dynamic lighting effects and improved comfort. These options enable designers to tailor spaces to meet specific functional and aesthetic needs.

GLAZING CLIP

The die-cast aluminium clip, paired with a polyamide socket, provides a robust solution for securely holding glass.

3 LEVEL DRAINAGE SYSTEM

Three profile levels, mullions, transoms, and 2nd Level transoms, designed to efficiently accommodate various grid shapes. This is particularly beneficial in scenarios where a vertical mullion intersects with a horizontal transom, which can create discontinuities in the drainage channels. The introduction of a 2nd level transom, effectively resolves this issue, ensuring the correct operation of the drainage system and the overall stability of the structure.

T-CLEAT CONNECTOR

The mullion-transom connection with T-cleat connector offers a fast, easy and economical solution for the safe placement of the transom on the column. This mode of connection facilitates installation, while providing stability to construction. In addition, it is possible to apply a special foam gasket, which effectively absorbs contractions and expansions, ensuring that the inner face of the frame is not affected. This approach combines functionality and aesthetics, making it ideal for various construction applications.

U-CLEAT CONNECTOR

The mullion-transom connection with U-cleat connector is a classic, timeless solution and offers stability and durability in many construction applications. In addition, there is the possibility of optional application of a special polyamide end cap, which covers any imperfections in the mullion-transom connection, offering a more elegant and complete look. This approach combines functionality and aesthetics, making it ideal for a variety of constructions.

PRESSURE PLATE'S DIVIDED GASKET

The specially designed 5mm gasket, of which a part is cut off at the point of assembly, is designed to serve specific needs in the drainage and ventilation areas. This adaptation is critical to the efficiency and safety of structures, ensuring that air and water are managed effectively.

MULLION'S DIVIDED GASKETS

The specially designed gaskets, in which a part is cut off at the point of connection to the transom, are designed to ensure absolute continuity of sealing. This approach allows to avoid leaks and enhance the overall integrity of the system, ensuring that connections remain secure and functional.

MULLION'S CONNECTION

The use of a special sealing accessory in the connection area of the mullions is essential for effective water management. This accessory facilitates the transfer of water from one mullion to another, ensuring enhanced waterproofing and preventing moisture accumulation, which can lead to structural issues over time. Furthermore, when combined with mullion reinforcement, it significantly improves the overall strength and durability of the structure. This integrated approach not only enhances the performance of the system but also contributes to the long-term sustainability of the building.

MULLION'S DRAINAGE AND VENTILATION

The use of a special EPDM accessory, ensures effective drainage and ventilation, preventing moisture accumulation and mold formation. This combined approach enhances the long-term strength of the mullion and improves overall system performance.

DURABILITY FOR A LIFE TIME

ELVIAL technology ensures you enjoy all the non negotiables that ascribe value to the aesthetic excellence.

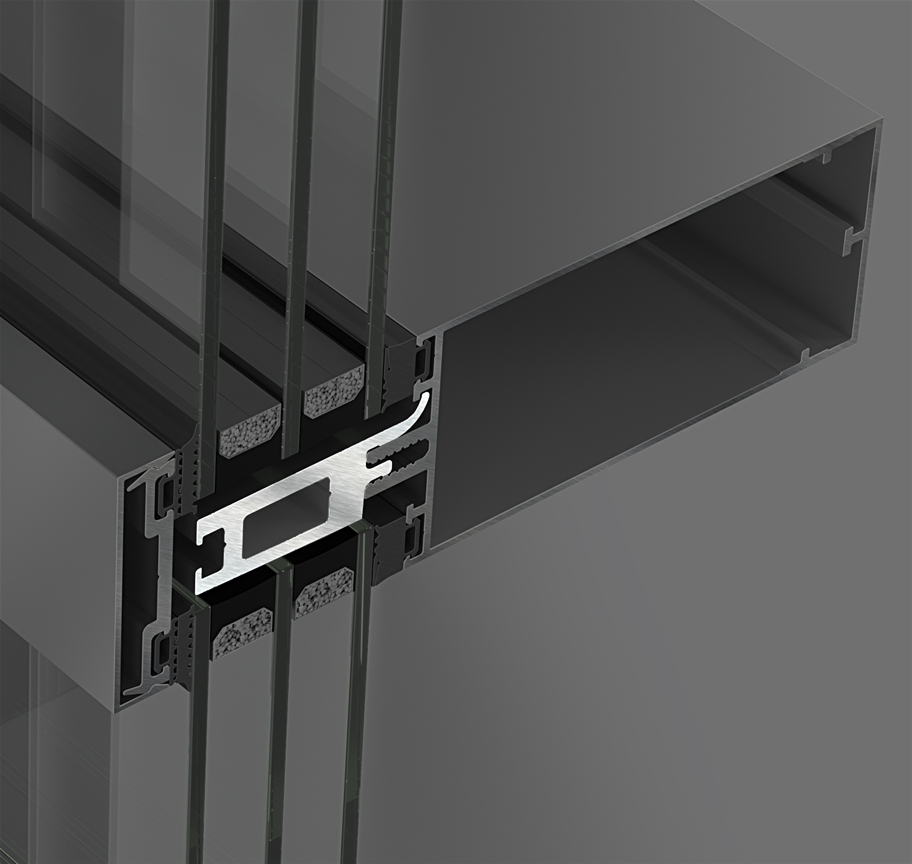

GLAZING LOAD SUPPORTS
We developed 3 different versions of glazing load supports, classic, midweight and heavy duty, that can cover all possible glazing both in width and weight.

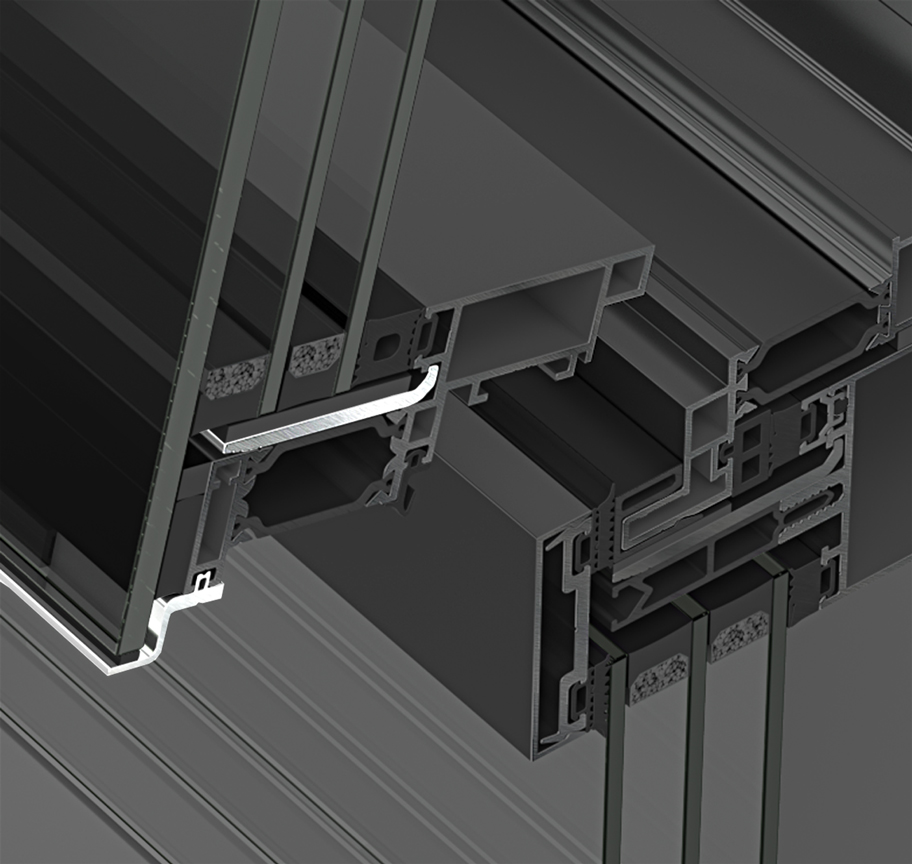

SUPPORT FOR GLAZING LOAD TRANSFER
We developed special inner and outer glazing load transfer supports that transfer the weight of the glass to the inner side of the projected sash where all the functional elements of the mechanism are positioned. This way excellent functionality and smooth operation of the window are ensured for a life time, regardless οf the weight of the glass.

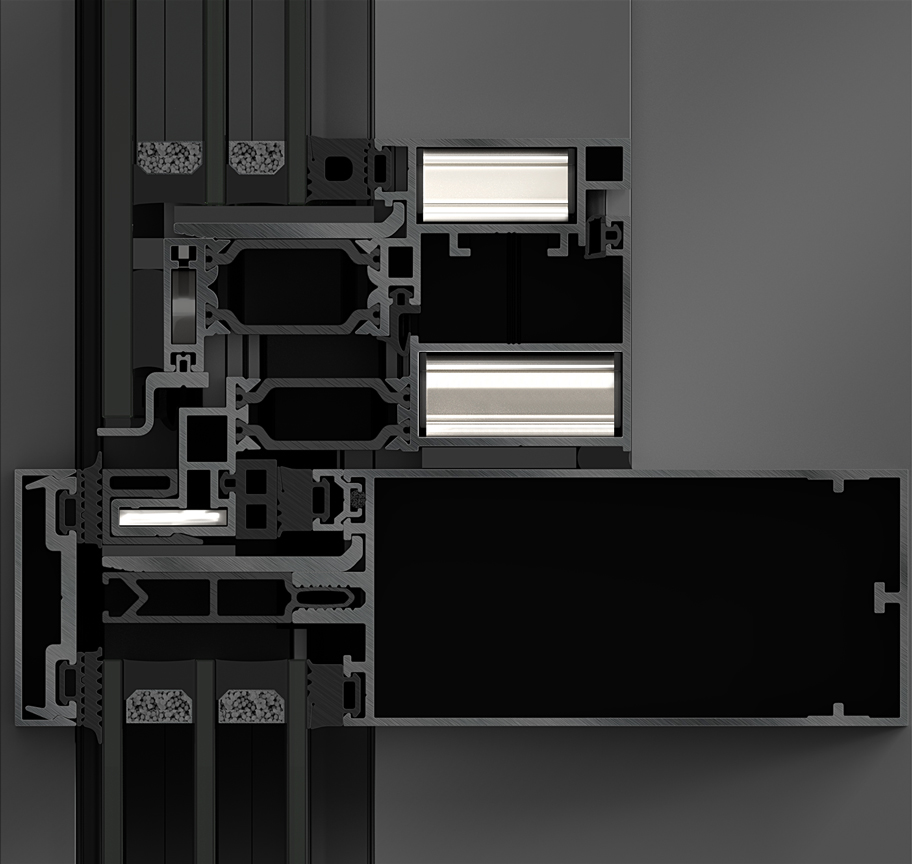

EFFICIENT PROTECTION
New generation joint corners with side caps, in frames and sashes of projected out windows, which lead the two-component glue along the joint point and completely cover the chambers.

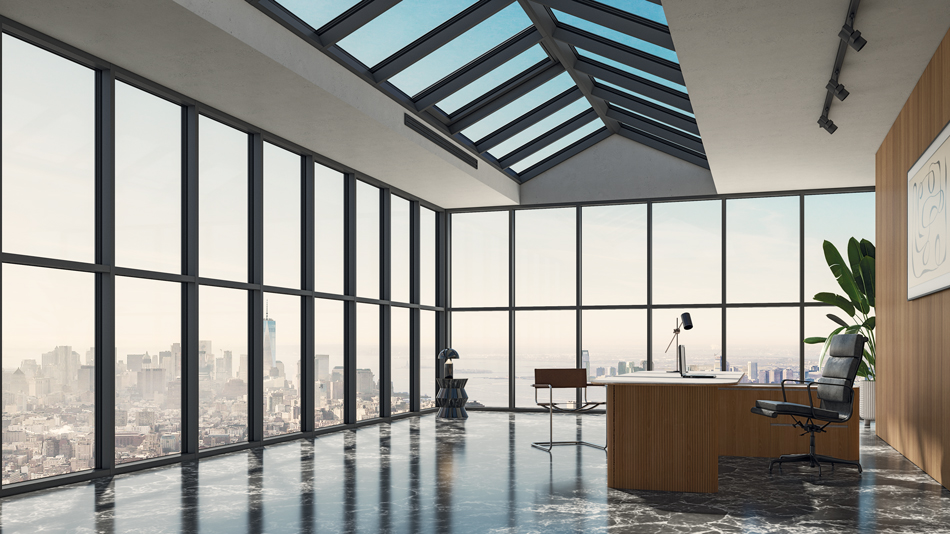

AIR PERMEABILITY

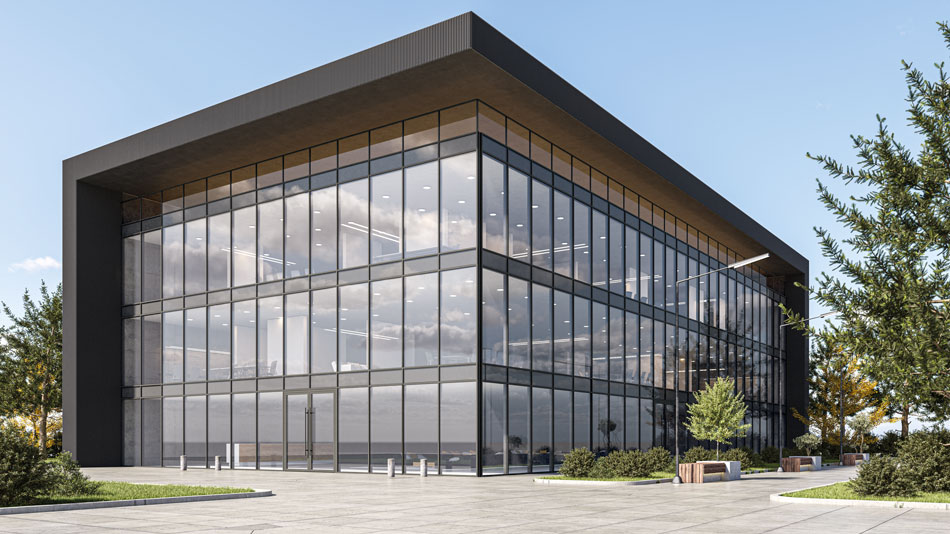

WATERTIGHTNESS

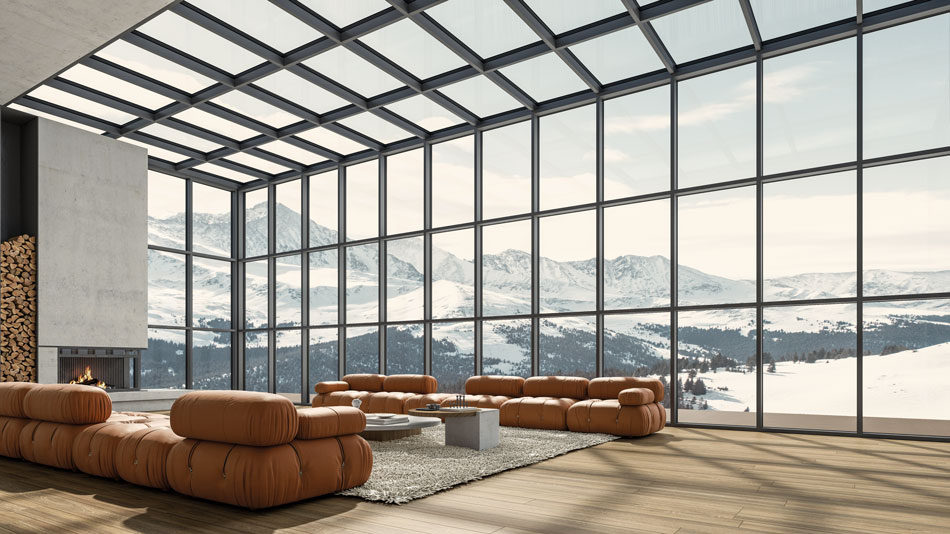

RESISTANCE TO WIND LOAD

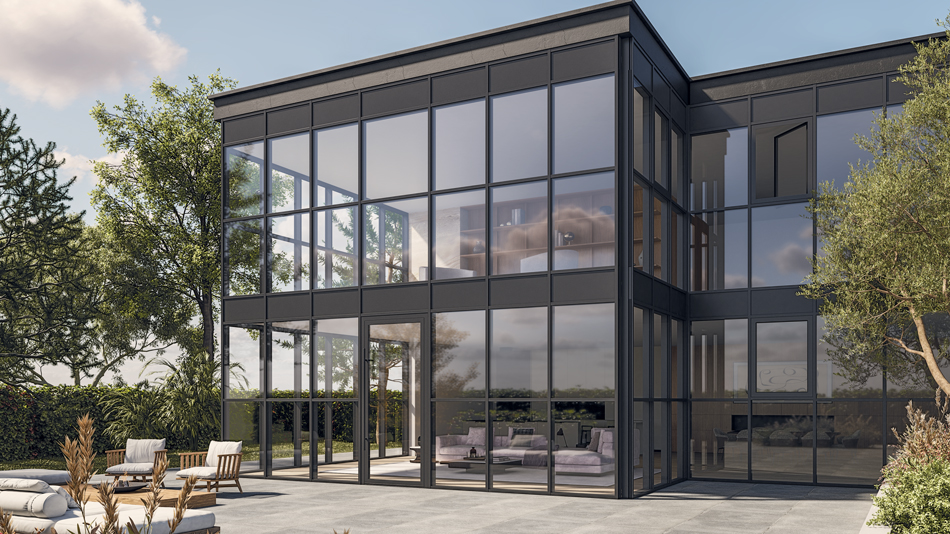

SOUND REDUCTION

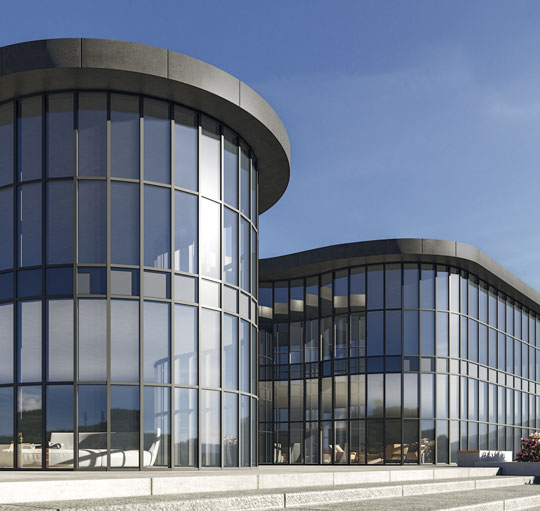

ELVIAL FS50

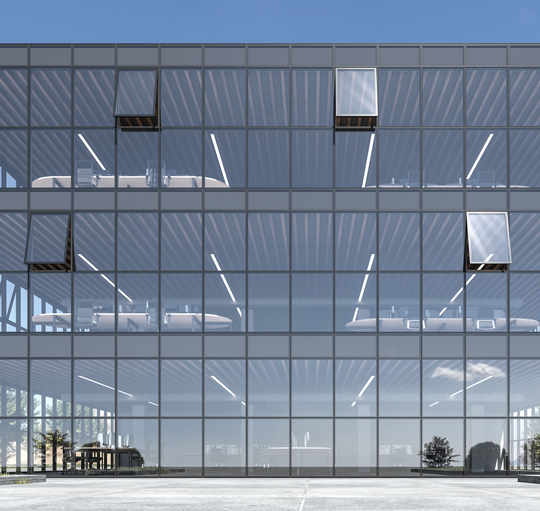

ELVIAL FS50_SG

Facades

The Benefits of Facades

Imagine a space with plenty of natural light, where modern aesthetics and energy efficiency coexist harmoniously. Excellent thermal insulation, sound reduction and airtightness, alongside an imposing facade. This is facades.

Enjoy the peaceful indoor atmosphere with aluminum frames that allow for maximum use of natural light and connect the outside with the inside environment.

At the same time, outdoor wooden curtains offer long-term resistance to weather conditions, with minimal maintenance, they are perfectly applied in combination with opening frames, making them an ideal solution for projects where quality and sustainability are required.

Facades Applications

Explore the countless applications of facades. In commercial buildings, they are used for storefronts and offices for a modern and professional look. At the same time, they ensure safety and excellent thermal insulation.

Ideal solution for hotels, storefronts and buildings with high demands on architectural design, as curtain walls allow for large openings, enhance the refined minimal effect and expand the sense of space.

Types of Facades

Structural: No visible aluminum, with the glass panels providing a clean and uniform construction.

Stick: Unparalleled aesthetics, with no visible components at the transom and column connection and with Passive House A+ certification.
